Lumberg India

Lamberg ranks among the leading providers of connector and interconnect systems.

We supply lumberg connector and interconnect systems in India, we are supplier for lumberg products in India.

RAST Connector Systems

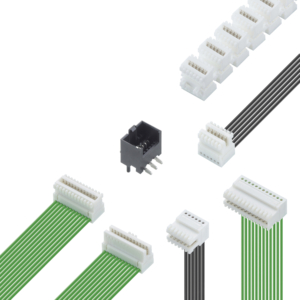

Series 33 | RAST 1.5 connectors, pitch 1.5 mm

Direct and indirect mating, for cable-to-board connections in insulation displacement technology. Keying according to RAST 1.5 standard avoids mismating. For signal and low load currents up to 3 A, pitch 1.5 mm (.059″).

Series 35 | RAST 2.5 connectors, pitch 2.5/5.0 mm

Direct and indirect mating, for cable-to-board and cable-to-cable connections in insulation displacement technology. Keying according to RAST 2.5 standard avoids mismating. For signal and low load currents up to 4 A, pitch 2.5 mm and 5.0 mm (.098″ and .197″). RAST 2.5 Power connectors for signal and load currents 10 A, pitch 5.0 mm (.197″).

Series 36 | RAST 5 connectors, pitch 5.0 mm

Direct and indirect mating, for cable-to-board and cable-to-cable connections with insulation displacement or screw clamp termination. Keying according to RAST 5 standard avoids mismating. Numerous tab headers and socket boards free to configure, special versions for higher temperatures. For signal and load currents up to 16 A, pitch 5.0 mm (.197″).

More PCB Connector Systems

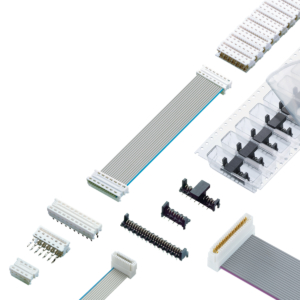

Series 30 | Micromodul™ connectors, pitch 1.27 mm

For cable-to-board connections with flat cables, where space is at a premium. Plugs and solder-in connectors in insulation displacement technology, tab headers for THT and SMT soldering. For signal and low load currents up to 1.2 A, pitch 1.27 mm (.050″).

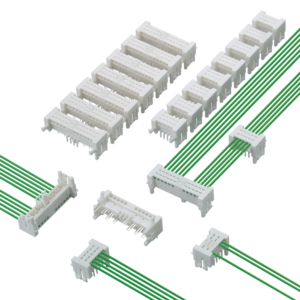

Series 73 | SmartSKEDD™ direct connectors, pitch 2.5/5.0 mm

Direct mating with SKEDD technology, for cable-to-board connections in insulation displacement technology, solderless and reversible. Keying avoids mismating. For signal and low load currents up to 4 A, pitch 2.5 mm and 5.0 mm (.098″ and .197″).

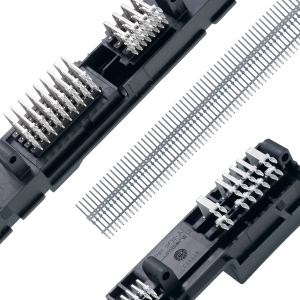

Series 72 | Press-fit interconnect solutions

For cable-to-board and board-to-board connections in automotive and beyond. Solderless press-fit connections as per IEC/EN/DIN 60352-5.

Circular Connectors

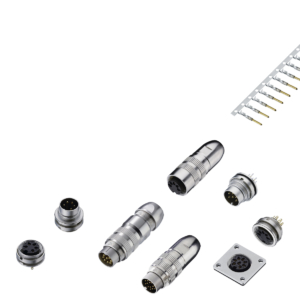

Series 03 | Circular connectors with threaded joint M16 acc.

Wide range of parts, 3–14 poles, with and without 360° shielding. Compatible mating acc. to IEC 61076-2-106 and IEC 60130-9. Easy mounting with solder or crimp technology. Protection degrees IP40 and IP68. Includes versions for 4G/5G mobile radio networks acc. to AISG. SWUM™ versions even sealed when unmated. For signal and load currents up to 5 A.

Series 03 | Circular connectors acc. to AISG specification, IP68

Wide range of parts for 4G/5G mobile radio networks, 5, 6 and 8 poles, including parts acc. to AISG specification C485. With 360° shielding and threaded joint M16 acc. to IEC 61076-2-106. Easy assembly with solder or crimp technology. Protection degree IP68. SWUM™ versions even sealed when unmated. For signal and load currents up to 5 A. This is an AISG extract of series 03.
