FRIEDRICH Schwingtechnik is one of the leading manufacturer of vibrator motors and a pioneer in the field of vibration technology.
Enquire Now
We are FRIEDRICH Schwingtechnik Product Supplier in India
FRIEDRICH Schwingtechnik is one of the leading manufacturer of vibrator motors and a pioneer in the field of vibration technology.
We supply FRIEDRICH products in India

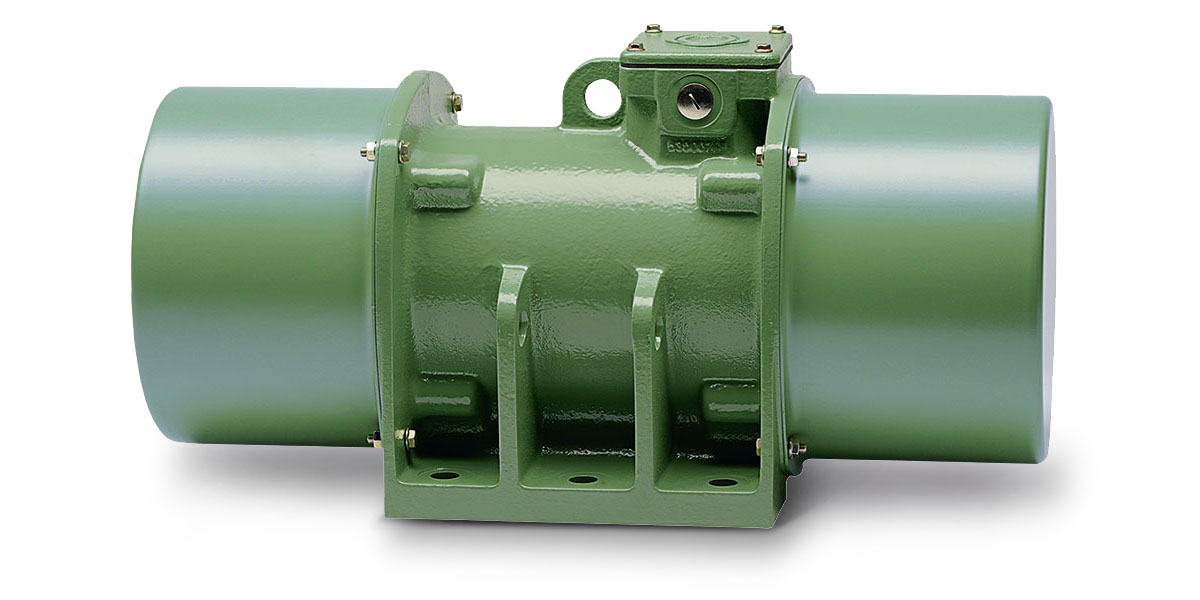

FRIEDRICH Vibrator Motor F-Type
These maintenance-free vibrator motors have been built for over 40 years with great success. The motor has a cylindrical roller bearing with high load capacity and improved bearing life. These bearings are lubricated for life with a special grease. Errors associated with re-greasing are eliminated. By using our maintenance-free vibration motors, overall maintenance costs will be reduced.
General specifications
Power Supply:
Voltage from 115 V to 690 V at 50 Hz and 60 Hz are available.
Degree of Protection:
IP 66
Thermal class:
F (155 °C) according to DIN EN 60034-1
Tropical Insulation:
Standard
Electrical Connection:
Use high flexible cable for heavy mechanical stress for example: H07RN-F or A07RN-F according to DIN VDE 0282.
Permissible Ambient Temperature:
-20 to +40 °C.
Special versions with cold steel to -65 °C are available upon request.
Operating Mode:
Continuous operation (S1) and discontinuous operation at 100 % centrifugal force.
Hoods:
Hoods made from pressed sheet metal or stainless steel comprise the special shape. A silicone seal provides optimum protection against the ingress of dust and water.
Assembly:
Without limitation, motors can be mounted in any position.
Color Coating:
Standard RAL 6011. Other colors available on request.
Type Code:
The type code is read as follows:
First block number = Working Moment in kgcm (Working Moment = 2 x Static Moment)
This is followed by a hyphen and then the pole number.
Where: 4 = 1460 rpm, 6 = 980 rpm (50 Hz primary frequency).
Behind the second dash, the size is specified.
Sonderausführungen und Zubehör auf Anfrage:
- Anti-Condensation Heating
- Thermistor
- Split End Covers (see special catalog)
- Special steel bearing retainer (see special catalog)
- Waterproof terminal box with special sealant shed, connection cables with different specifications in different lengths are also available
FRIEDRICH ATEX-Vibrator Motor FE-Type
FE models are designed with increased safety “Ex e” for use in areas with potential hazard by dust (zone 21 and 22) or gas (Zone 1) in accordance with directive 94/9/EC and 2014/34/EU.
Vibrator motors with approval according to equipment group II 2.
EC type-examination: KEMA 03 ATEX 2233X, IECEx KEM10.0076X
Temperature class: T3 or T4
General specifications
Power Supply:
Voltages from 115 V to 690 V at 50 Hz available
Degree of protection:
IP 66
Thermal class:
F (155 °C) according to DIN EN 60034-1
Tropical insulation:
Standard
Thermal overload protection:
As standard PTC 120 °C
Electrical Connection:
Used exclusively on Ex e motors. These rubber hose assemblies are ideal for heavy mechanical stress according to VDE0282 Part 4, such as the type H07RN-F or A07RN-F or higher grade cable. There are 7-wire cable for zones 21 and 22 used as the PTC and can also be connected with this cable. Specifically: 3x phase, 1x Grounding, 2x PTC, 1x unoccupied. Some motors may also be a 4-wire cable for the live conductors and cables for the PTC, which a second cable gland is used. For this purpose, please contact FRIEDRICH Schwingtechnik.
Mounted on the motor terminal box is an ATEX-sealing plug and ATEX Cable gland. Use only certified components for assembly of the cable. The O-ring for sealing must be installed and undamaged.
Permissible Ambient Temperature:
-20 °C to +40 °C
Operating Mode:
Continuous operation (S1) and discontinuous operation at 100 % centrifugal force.
Hoods:
Hoods made from pressed sheet metal or stainless steel comprise the special shape. A silicone seal provides optimum protection against the ingress of dust and water.
Stock:
The built-in special cylindrical roller bearings with increased load capacity and clearance, are lubricated with a special grease for life.
Assembly:
Without limitation, motors can be mounted in any position.
Color Coating:
Standard RAL 6011. Other colors available on request.
Type Code:
The type code is read as follows:
First block number = Working Moment in kgcm
(working moment = 2 x static moment)
This is followed by a hyphen and then the pole number.
Where: 4 = 1460 rpm 6 = 980 rpm (at 50 Hz mains frequency).
Behind the second dash, the size is specified.

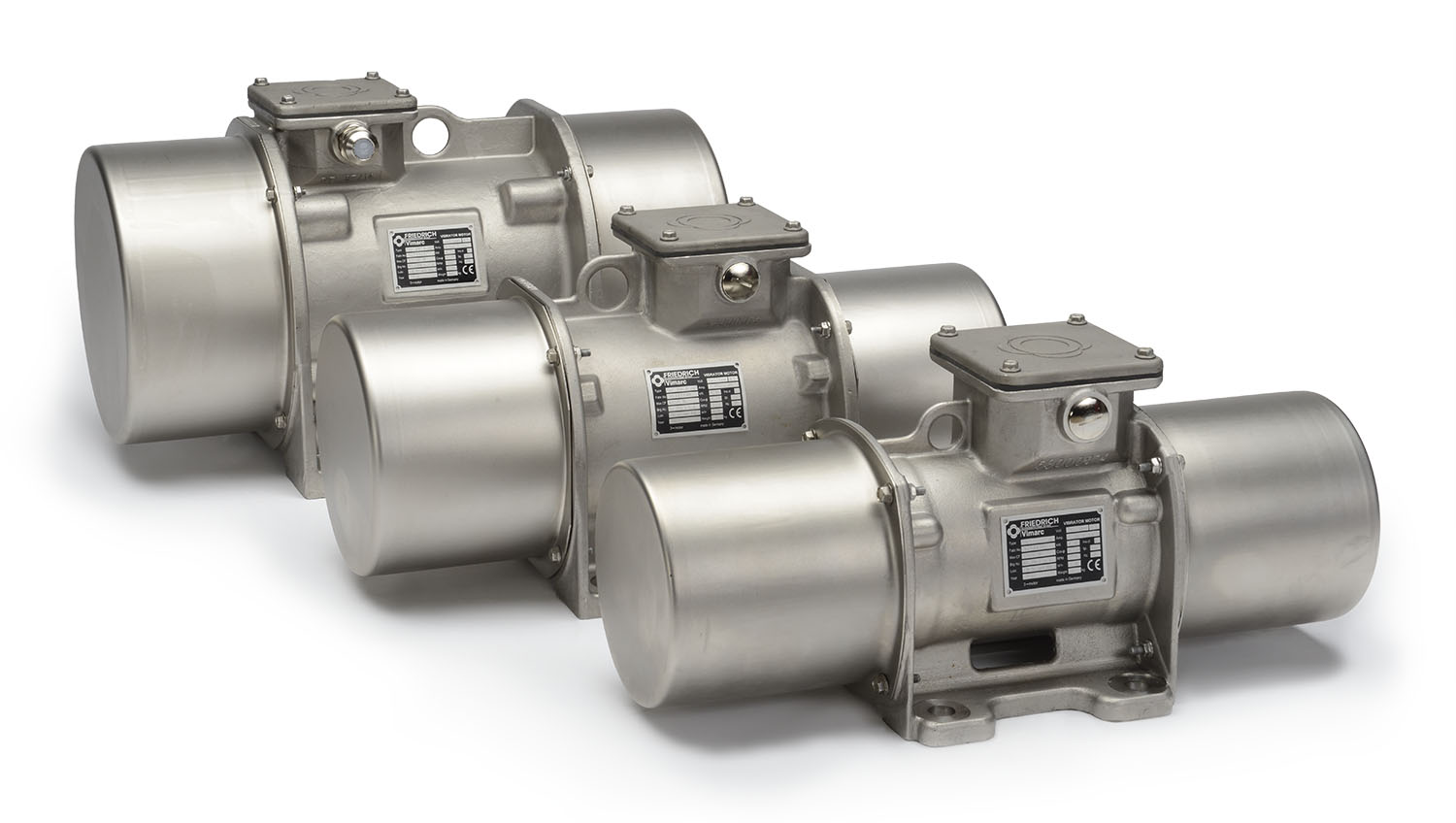

FRIEDRICH / VIMARC® Stainless Steel RVS-Type
FRIEDRICH/VIMARC® stainless steel motors were developed to meet the constantly increasing demands on hygiene, germ-free use, and good cleaning characteristics in the food and pharmaceutical industries.
The stator housing and the terminal box cover of this series are made of investment-cast stainless steel and are hermetically sealed by deep-drawn stainless steel sheet metal covers. Special cleaning openings in the stainless steel housing provide excellent cleaning possibilities on the underside of the housing.
The smooth motor surface – without any ribbing – allows absolutely no formation of germs.
In all other respects these motors satisfy the general specifications of standard FRIEDRICH motors.
General specifications
Power Supply:
Voltages from 115 V to 690 V at 50 Hz available
Degree of protection:
IP 66
Thermal class:
F (155 °C) according to DIN EN 60034-1
Tropical insulation:
Standard
Thermal overload protection:
As standard PTC 120 °C
Electrical Connection:
Used exclusively on Ex e motors. These rubber hose assemblies are ideal for heavy mechanical stress according to VDE0282 Part 4, such as the type H07RN-F or A07RN-F or higher grade cable. There are 7-wire cable for zones 21 and 22 used as the PTC and can also be connected with this cable. Specifically: 3x phase, 1x Grounding, 2x PTC, 1x unoccupied. Some motors may also be a 4-wire cable for the live conductors and cables for the PTC, which a second cable gland is used. For this purpose, please contact FRIEDRICH Schwingtechnik.
Mounted on the motor terminal box is an ATEX-sealing plug and ATEX Cable gland. Use only certified components for assembly of the cable. The O-ring for sealing must be installed and undamaged.
Permissible Ambient Temperature:
-20 °C to +40 °C
Operating Mode:
Continuous operation (S1) and discontinuous operation at 100 % centrifugal force.
Hoods:
Hoods made from pressed sheet metal or stainless steel comprise the special shape. A silicone seal provides optimum protection against the ingress of dust and water.
Stock:
The built-in special cylindrical roller bearings with increased load capacity and clearance, are lubricated with a special grease for life.
Assembly:
Without limitation, motors can be mounted in any position.
Color Coating:
Standard RAL 6011. Other colors available on request.
Type Code:
The type code is read as follows:
First block number = Working Moment in kgcm
(working moment = 2 x static moment)
This is followed by a hyphen and then the pole number.
Where: 4 = 1460 rpm 6 = 980 rpm (at 50 Hz mains frequency).
Behind the second dash, the size is specified.

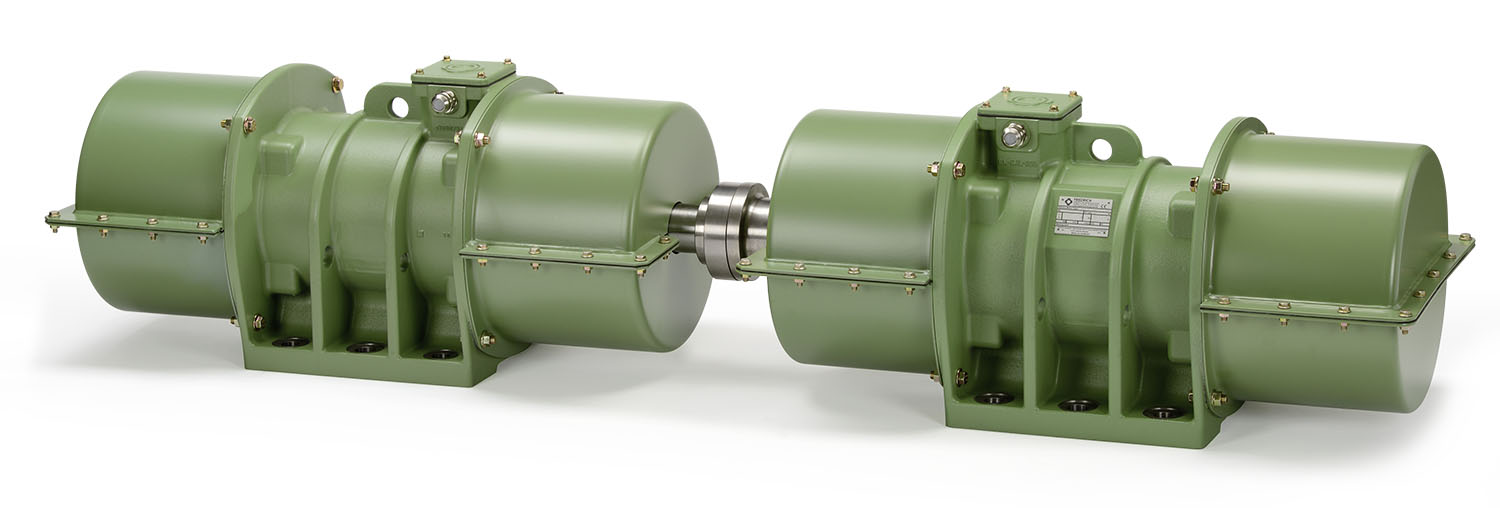

FRIEDRICH Coupled Motor FK-Type
Coupled motors are designed with a one-sided elongated shaft connected by a split end cover with center hole. Two motors are connected by a coupling. This compact design is facilitated by the interaction of four vibration motors and achieves linear vibrating with very high Working Moments.
General specifications
Power Supply:
Voltages from 115 V to 690 V at 50 Hz and 60 Hz available
Degree of Protection:
IP 54
Thermal class:
F (155 °C) according to DIN EN 60034-1
Tropical Insulation:
Standard
Electrical Connection:
Use high flexible cable for heavy mechanical stress for example: H07RN-F or A07RN-F according to DIN VDE 0282.
Permissible ambient temperature:
-20 to +40 °C
Operating mode:
Continuous operation (S1) and discontinuous operation at 100 % centrifugal force.
Hoods:
Hoods made from pressed sheet metal, comprise the special shape. A silicone seal provides optimum protection against the ingress of dust and water.
Assembly:
Without limitation, motors can be mounted in any position.
Color Coating:
Standard RAL 6011. Other colors available on request.
Type code:
The type code is read as follows:
First block number = working moment in kgcm
(working moment = 2 x static Moment)
This is followed by a hyphen and then the pole number.
Where: 4 = 1460 rpm 6 = 980 rpm (at 50 Hz mains frequency).
Behind the second dash, the size is specified.
- Anti-condensation heating
- Thermistor
- split end covers (see special catalog)
- Special steel bearing retainer (see special catalog)
- Waterproof terminal box with a special sealant shed, connection cables with different Cable specifications in different lengths available
