Precision sensors for every measurement quantity

Right Motions supplies Kistler’s complete sensor portfolio — force, pressure, acceleration, torque, strain and optical — to Indian R&D labs, test benches, manufacturing lines and quality assurance teams. Genuine Swiss instruments, local stock, application engineering support.

FORCE SENSORS

Compressive, tensile and multi-axis force measurement

Piezoelectric force sensors from Kistler are the optimal choice for measuring dynamic and quasi-static compressive and tensile forces. High stiffness, fast response and wide measurement ranges — from 5 N to 1200 kN — make them ideal for press-force monitoring, NVH testing and structural analysis.

Press Force Load Cells

Factory preloaded and calibrated for immediate use. Ideal for dynamic and quasi-static press-force monitoring on production lines.

SlimLine Ring Force Sensors

Ultra-slim piezoelectric ring sensors for measuring cutting forces close to the cutting edge in machining applications.

Multi-Component Force Sensors

Triaxial (3-axis) and 6-axis force-torque sensors measuring Fx, Fy, Fz and all moments simultaneously — no calculation needed.

PRESSURE SENSORS

Piezoelectric and piezoresistive pressure measurement

Kistler offers both piezoelectric and piezoresistive pressure sensors — covering everything from miniature M5 absolute sensors to high-pressure piezoelectric sensors up to 10,000 bar for ballistics, gas dynamics and cavity pressure monitoring in injection moulding.

Miniature Absolute Pressure Sensors

World’s smallest media-separated pressure sensors in M5 thread. Piezoresistive, universal use. Available with 0.5 m and 2 m cables.

High-Pressure Sensors

Piezoelectric sensors for precise high-pressure measurements at high speeds — ballistics, gas gun tests, detonation and combustion research.

Cavity Pressure Sensors

Direct-measuring piezoelectric cavity sensors with HighSens and Unisens® technology for injection moulding process monitoring. ø4 mm and ø6 mm.

ACCELEROMETERS

Vibration, shock and motion measurement

Kistler accelerometers cover IEPE, charge-output, MEMS and PiezoStar crystal technologies — from miniature triaxial KiVibe sensors to 50,000 g shock accelerometers and cryo/high-temperature K-Shear designs. High temperature stability for superior accuracy across ambient fluctuations.

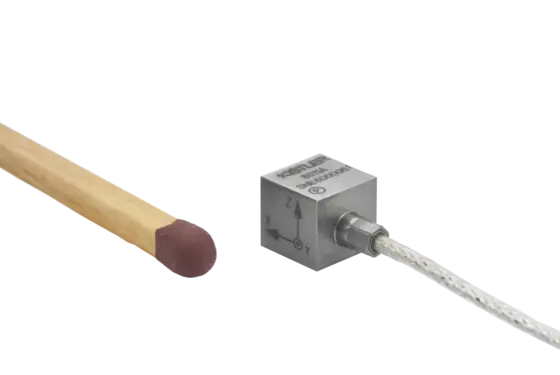

KiVibe Miniature Triaxial IEPE

World’s smallest triaxial accelerometers — PiezoStar crystal, measuring vibration in three orthogonal axes simultaneously with minimal mass loading.

General Purpose K-Shear Accelerometers

Small, lightweight IEPE accelerometers for structural vibration and NVH measurements. Side and top connector variants. 25 g to 5000 g ranges.

Shock Accelerometers

Quartz K-Shear shock accelerometers for impulse, impact and pyrotechnic shock measurements — used in crash, MIL-spec and aerospace testing.

TORQUE SENSORS

Shaft torque, reaction torque and test bench flanges

Kistler torque sensors — strain gauge (DMS) and piezoelectric — cover rotating shaft measurements, test bench dynamometers, tightening tool calibration and screwdriver characterisation. The KiTorq flange system provides integrated speed and angle measurement with PROFIBUS, PROFINET and Ethernet interfaces.

KiTorq Torque Measuring Flange Systems

Non-contact flange systems with integrated speed and high-resolution angle measurement. Analog and digital interfaces — PROFIBUS, PROFINET, Ethernet — for test bench integration.

Shaft Torque Sensors — Dual Range

Non-contact shaft torque transducers with dual measuring range and integrated speed measurement. Suitable for drives, transmissions and pumps.

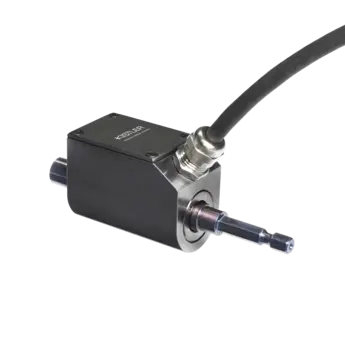

T-Sensor — Tightening Torque Sensors

Fixed and rotating shaft torque sensors for tightening tool characterisation and screwdriver calibration. Hex drive and 1/4″ square drive variants.

STRAIN SENSORS

High-resolution structural strain and indirect force measurement

Piezoelectric strain sensors from Kistler measure strains occurring on a structure with extremely high resolution — covering surface-mount strain sensors, transverse and longitudinal strain measuring pins, and the new FSI fiber-optic sensor array using Fiber Segment Interferometry for lightweight distributed sensing.

Piezoelectric Surface Strain Sensors

Mounted on machine or structural surfaces to measure force-proportional strain. Available in highly sensitive (±600 µε) and robust industrial (±800 µε) variants.

Strain Measuring Pins

Transverse (M8, M10) and longitudinal measuring pins inserted in cylindrical bores for indirect force measurement in machine structures and tools.

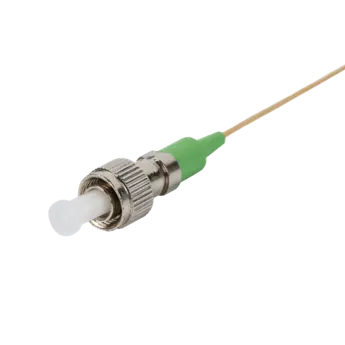

FSI Fiber-Optic Strain Sensor Arrays

Lightweight fiber-optic sensor arrays using Fiber Segment Interferometry — high sensitivity, large dynamic range, immune to EMI. For aerospace, automotive and structural testing.
